Stage 6 — RAG and Memory: find the source first, then remember what matters

RAG (Retrieval-Augmented Generation): retrieve relevant material, then answer using it.

Models do not know everything. RAG asks a model to consult a book before it answers; Memory gives it a notebook for things it will need next time. This stage separates the two and then builds both step by step.

📌 Learning goals

By the end of this stage, you can:

1. State the difference between RAG and Memory in one sentence.
2. Explain how data becomes chunks and embeddings, then gets retrieved.
3. Build a minimal RAG pipeline whose answers include sources.
4. Know what data is worth remembering and what should not be stored.
5. Compare two approaches with a small test instead of relying on “it feels better.”

🧩 Meet seven core terms first

Core term	Plain-language picture	Precise meaning
Retrieval	Find pages that may contain an answer	Find relevant content from external data after receiving a question.
RAG (Retrieval-Augmented Generation)	Look in a book, then answer	Retrieve first, then give the found content to the model to generate an answer.
Embedding	A coordinate card for a sentence’s meaning	A sequence of numbers that places semantically similar text near each other in vector space.
Vector Store / Vector Database	A drawer that finds cards by meaning	Stores embeddings and retrieves related data by similarity.
Chunk	A small card cut from a large book	A smaller piece of a long document for search and for fitting into context.
Reranking	Reorder first-pass cards	Score candidates again so more useful chunks rank first.
Memory	The assistant’s notebook	State needed across messages or sessions; it is not another name for chat history.

Open full-size image (new tab)

Choose the right method with one table

Problem	Consider first	Why
The data is short and needed only for this answer	Long context	Put it directly in this request for the shortest flow.
There are many documents and you only know which passages matter after the question arrives	RAG	Retrieve relevant passages instead of sending every document every time.
The assistant must remember preferences, task state, or results next time	Memory	Write reusable information to a storage layer that can be read again.
You want to consistently change model behavior or a capability	Fine-tuning	It adjusts model weights and behavior; it does not automatically provide current documents.

No option is always best. Evaluate using your own data, questions, and success criteria.

🚪 Entry requirements and reading paths

• First time learning: read the seven terms, complete Exercises 1–4, then do the short self-check.
• Building a long-term assistant: complete Exercise 5, then open the Memory design path.
• Researching or deploying: finally explore advanced RAG, chunking, evaluation, and research entry points.

Time, environment, cost, and data safety

• Plan two or three sessions; complete one runnable exercise each time.
• You need Python, Git, and a terminal. Follow each exercise README for installation.
• Path A uses OpenAI-compatible examples; Path B uses Anthropic. Model and embedding calls can cost money.
• Test with small documents. Do not send passwords, tokens, medical data, or unauthorized company documents to external services.
• Keep API keys in environment variables, never in code or commits.

📚 Required reading

1. LangChain Retrieval — see how loaders, splitters, embeddings, vector stores, and retrievers work together.
2. LlamaIndex concepts — understand indexing and querying from a document-oriented view.
3. Chroma getting started — see the smallest local vector-database workflow.
4. LangGraph Agentic RAG — after basic RAG, see how an agent decides whether to retrieve.

🛠 Hands-on exercises

Before each exercise, return to the repository root (the folder with README.md). The commands below enter the exercise folder, install its packages, then run local Path A. For exercises 4 and 5, first follow their guides to set up Ollama, download qwen2.5:3b, and start the service. Path B is optional; check whether it uses cloud services, its provider, key setup, and costs first.

Exercise 1: Turn two sentences into embeddings

Result: semantically similar sentences appear closer than unrelated ones.

cd examples/stage-6/01-embeddings
python -m pip install -r requirements.txt
python starter.py

Open setup, checks, and optional Path B. Start with only a few sentences to avoid unnecessary API costs.

Exercise 2: Put embeddings in a vector database

Result: store text in Chroma, then retrieve a relevant chunk with one question.

cd examples/stage-6/02-vector-db
python -m pip install -r requirements.txt
python starter.py

Open setup, checks, and optional Path B. Exercise data must not contain secrets or personal information.

Exercise 3: Compare three chunking methods

Result: see what happens when chunks are too large, too small, or overlap too much.

cd examples/stage-6/03-chunking-comparison
python -m pip install -r requirements.txt
python starter.py

Open setup, checks, and optional Path B. Do not memorize a “standard size”; begin with document structure and test results.

Exercise 4: Connect a complete RAG pipeline

Result: the program retrieves information, answers, and shows the source chunks it used.

cd examples/stage-6/04-full-rag-pipeline
python -m pip install -r requirements.txt
python starter.py

Open setup, checks, and optional Path B. Start with a small dataset; “the program runs” does not mean the answer is correct.

Exercise 5: Remember a preference

Result: This exercise only adds, searches, and reads one preference while the program is running; temporary storage is not long-term persistence.

cd examples/stage-6/05-long-term-memory
python -m pip install -r requirements.txt
python starter.py

Open setup, checks, and optional Path B. Save only data needed to finish a task and provide ways to view, change, and delete it.

Recommended mini-project: an assistant that retrieves and remembers

Choose three to five small documents you are allowed to use. Have the assistant list sources when it answers, then remember one non-sensitive preference, such as “give the short answer first.” It succeeds when it says it does not know without evidence, reads the preference after a restart, and lets you delete it.

🌐 Basic RAG pipeline

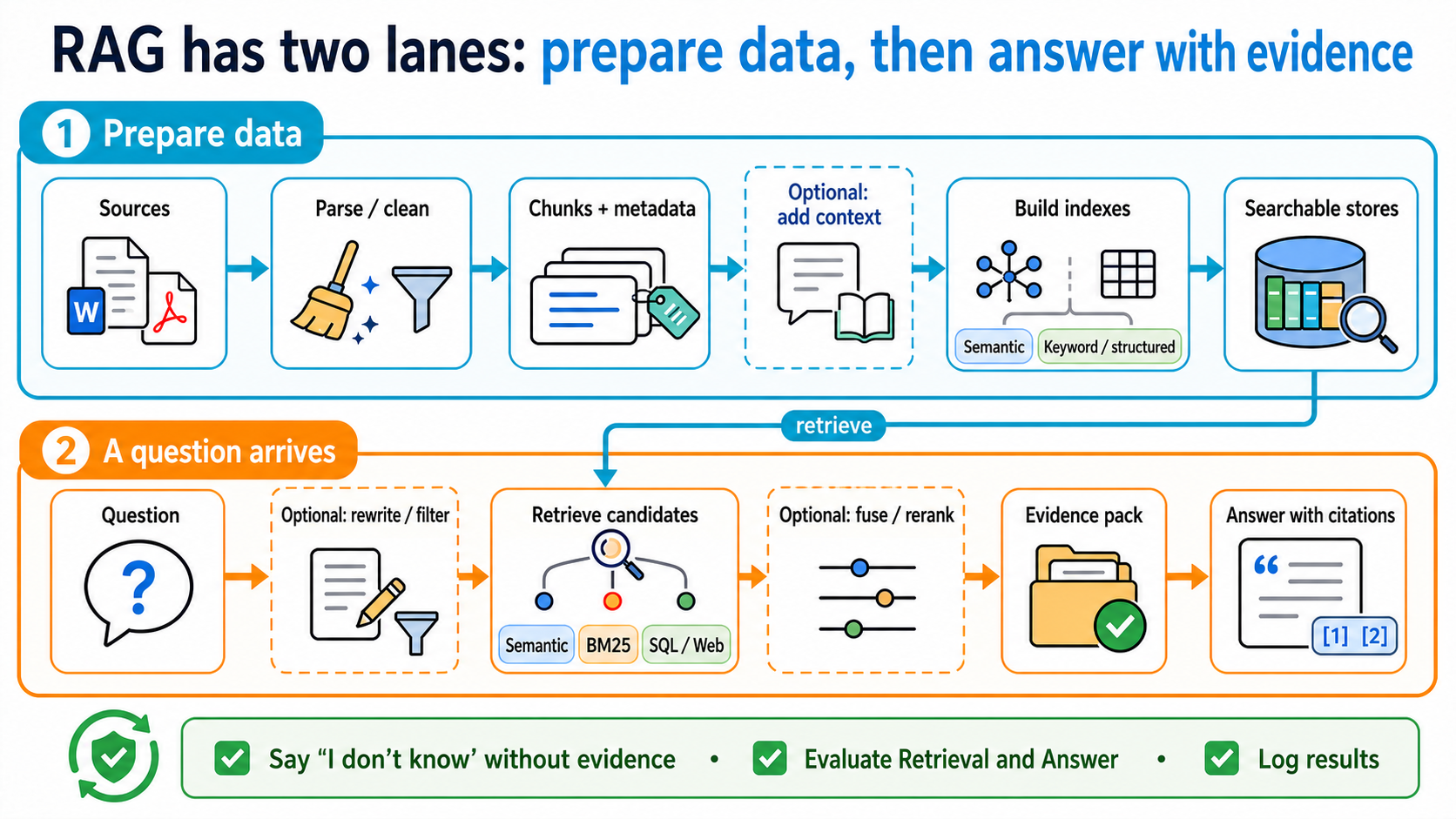

Basic RAG pipeline: how data goes in and answers come out

RAG has two paths: one prepares the data, and the other retrieves it when a question arrives.

Open full-size image (new tab)

Start with 2-step RAG: every question retrieves first and answers second, so it is easiest to test. Agentic RAG lets the model decide whether to retrieve, rewrite a question, or search again. Hybrid RAG combines fixed steps with agent decisions. It differs from Hybrid Search, which only combines candidate sets during retrieval.

Stage	What it does	Plain-language picture
Load	Read PDFs, web pages, or database content	Bring books to the table
Split	Divide into chunks	Cut books into cards
Embed	Turn each card into a vector	Give meanings coordinates
Store	Save vectors and source metadata	Put labelled cards in drawers
Retrieve	Find candidate chunks for a question	Take out cards that may answer it
Rerank (optional)	Reorder candidates	Check which card is most useful
Generate	Give the model the question and evidence	Answer while looking at the cards
Cite/Evaluate	Show sources and inspect results	Tell people where the answer came from

A Retriever finds documents for a question. It need not use a vector database: BM25 (keyword ranking method) can find product IDs; SQL (a language for querying databases) can search tables. Web search and hybrid search are other options. Citations show which sources support the answer.

🧭 Want to go deeper? Learn RAG and Memory separately

These are advanced Stage 6 branches, not new prerequisites. Complete the basic exercises above, then choose the path that fits your problem.

Advanced RAG: find the broken step before adding new techniques

Built a minimal RAG system, but documents are missing, ranked badly, or hard to connect across sources? Start with the symptom, then choose a method. The advanced page keeps the full technical terms, required reading, and rated resources.

Agent Memory: save only what is useful, permitted, and removable

For cross-session assistants, personalization, or long-running tasks. It explains short-term/long-term memory plus Semantic, Episodic, and Procedural Memory, then covers write, search, update, deletion, expiry, and user isolation; Mem0, Letta Code, LangMem, Graphiti, and research resources stay directly visible.

How to choose: if an answer needs better external evidence, take the Advanced RAG path; if an assistant must read its own state next time, take the Agent Memory path. When you need both, test them separately before connecting them.

🎯 Curated projects and learning resources

This table keeps only the tools needed for a Stage 6 baseline. Advanced techniques and memory projects have moved to the two separate pages above so one table does not mix them.

Verified: 2026-08-30 UTC

Group	Project / document	Rating	Use	Limits
RAG framework	LlamaIndex	⭐⭐⭐⭐⭐	Best for: Beginners building document applications What you can learn: indexes, retrievers, query engines	Status/limits: MIT; use the official starter first
	Haystack	⭐⭐⭐⭐	Best for: People comparing modular pipelines What you can learn: components, pipelines, routing	Status/limits: Apache-2.0; choose one framework to practice first
	RAGFlow	⭐⭐⭐⭐	Best for: Teams studying a complete web product What you can learn: document parsing, retrieval, UI	Status/limits: Apache-2.0; heavier than a teaching example
Vector data	Chroma	⭐⭐⭐⭐⭐	Best for: First local vector search What you can learn: collections, add, query	Status/limits: Apache-2.0; practice and production settings differ
	Qdrant	⭐⭐⭐⭐⭐	Best for: Teams needing self-hosted or managed service What you can learn: dense, sparse, hybrid queries	Status/limits: Apache-2.0; plan service operation and backups
	Weaviate	⭐⭐⭐⭐	Best for: Teams needing schema and hybrid search What you can learn: BM25 + vector search	Status/limits: BSD-3-Clause outside wl/; wl/ requires a separate enterprise license; start small
	pgvector	⭐⭐⭐⭐	Best for: Teams already using PostgreSQL What you can learn: SQL and vectors in one database	Status/limits: PostgreSQL extension; still needs indexes and tuning
Evaluation and complete products	Ragas	⭐⭐⭐⭐⭐	Best for: Teams building rerunnable evaluations What you can learn: datasets, metrics, experiments	Status/limits: Apache-2.0; metrics still need human calibration
	Onyx	⭐⭐⭐⭐	Best for: People studying a complete AI assistant architecture What you can learn: ingest, retrieval, chat, administration	Status/limits: Large product; use as an architecture reference, not a starter

✅ Self-check before Stage 7

• I can state what Retrieval, RAG, and Memory each do.
• I can explain how chunks, embeddings, and a vector database fit together.
• My RAG answers show sources and say they do not know when no evidence exists.
• I can compare changes with a small question set instead of one attractive answer.
• Memory saves only necessary, permitted data and lets users view, change, and delete it.

When you can do these, go to Stage 7 — Agent Production Engineering: Testable, Observable, Stoppable, and Recoverable.
